# Proposed architecture with Truvera

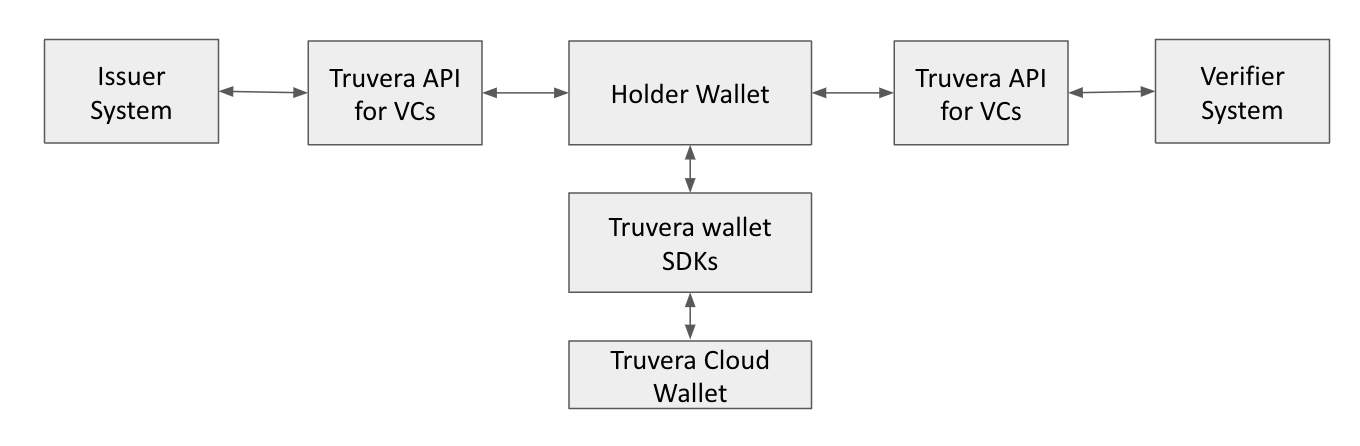

## Basic architecture

<figure><img src="https://815575130-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FWRMhdRsPkUzlSqCYzbgF%2Fuploads%2Fgit-blob-722d77949ae88117c0e9334bf2a47f81ff019d9b%2FScreenshot%202024-12-27%20at%2016.43.29.png?alt=media" alt=""><figcaption></figcaption></figure>

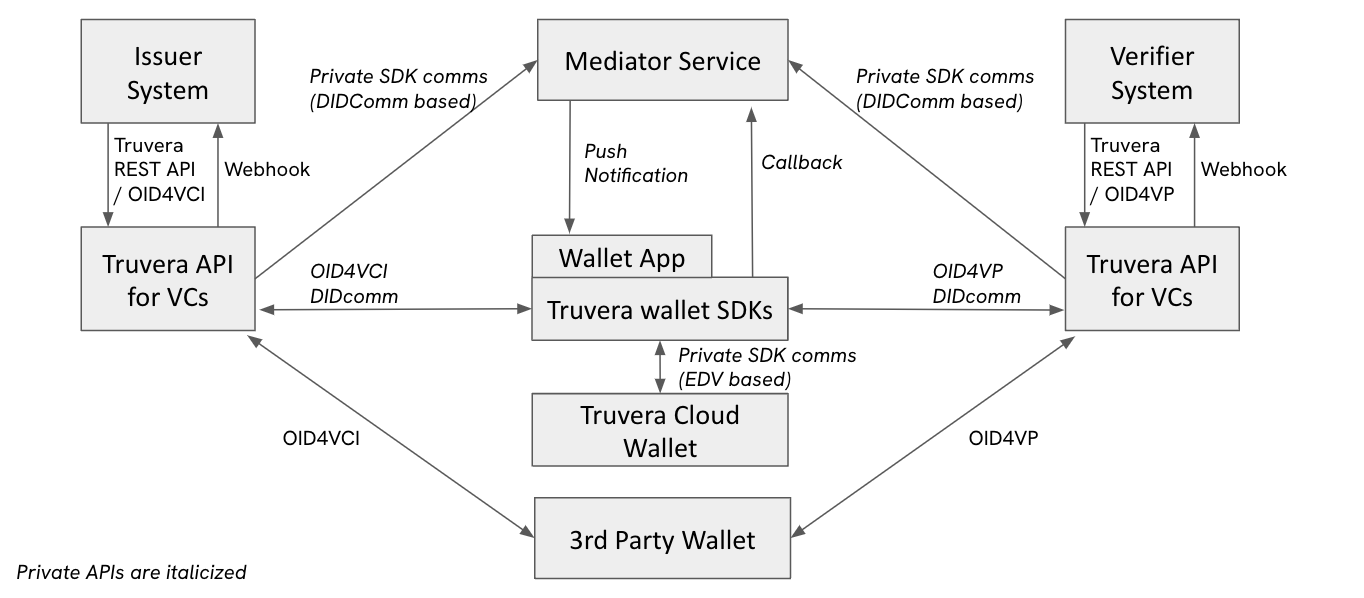

## APIs - Truvera’s VC service

<figure><img src="https://815575130-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FWRMhdRsPkUzlSqCYzbgF%2Fuploads%2Fgit-blob-62576bc10fef7d8b8d7c44319e6c9559f96d0413%2FScreenshot%202024-12-27%20at%2016.44.11.png?alt=media" alt=""><figcaption></figcaption></figure>

## Supported APIs

|                     | Truvera VC Service       | 3rd Party VC Service     |
| ------------------- | ------------------------ | ------------------------ |
| Truvera wallet SDKs | <p>OID4VC<br>DIDcomm</p> | <p>OID4VC<br>DIDcomm</p> |
| 3rd Party Wallet    | <p>OID4VC<br>DIDcomm</p> | Unsupported              |

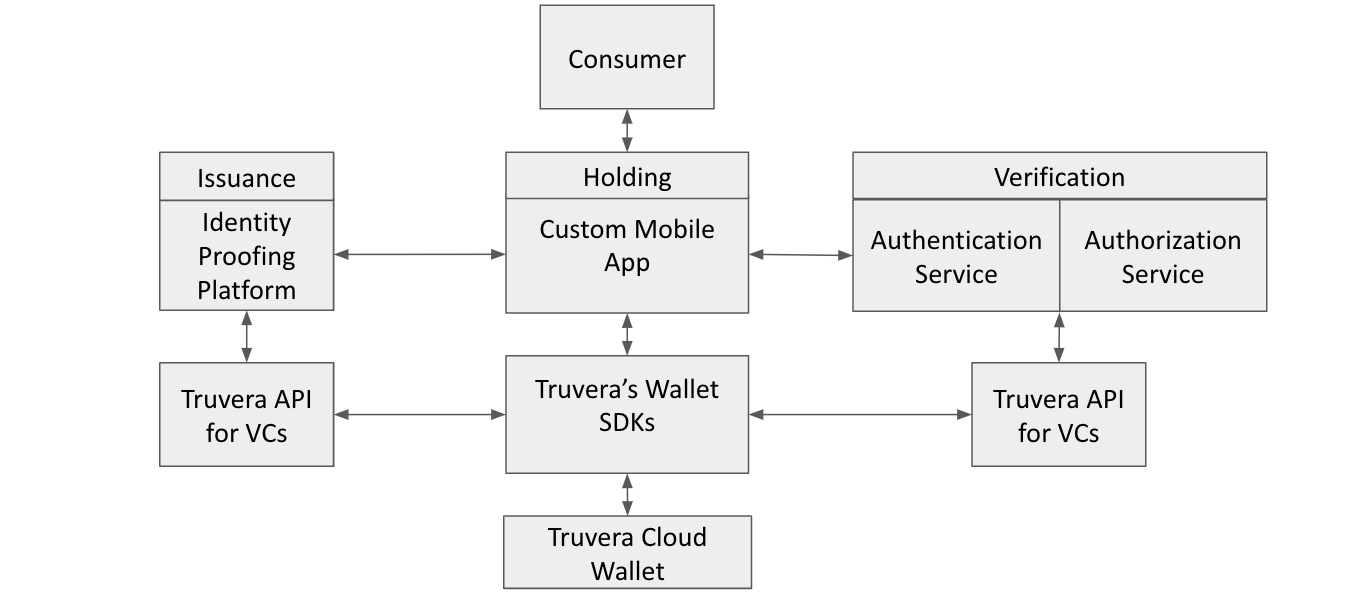

## Integration with customer systems

<figure><img src="https://815575130-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FWRMhdRsPkUzlSqCYzbgF%2Fuploads%2Fgit-blob-1e245f786015b021db5225fc8b166bb61cd71ac4%2FScreenshot%202024-12-27%20at%2016.45.53.png?alt=media" alt=""><figcaption></figcaption></figure>

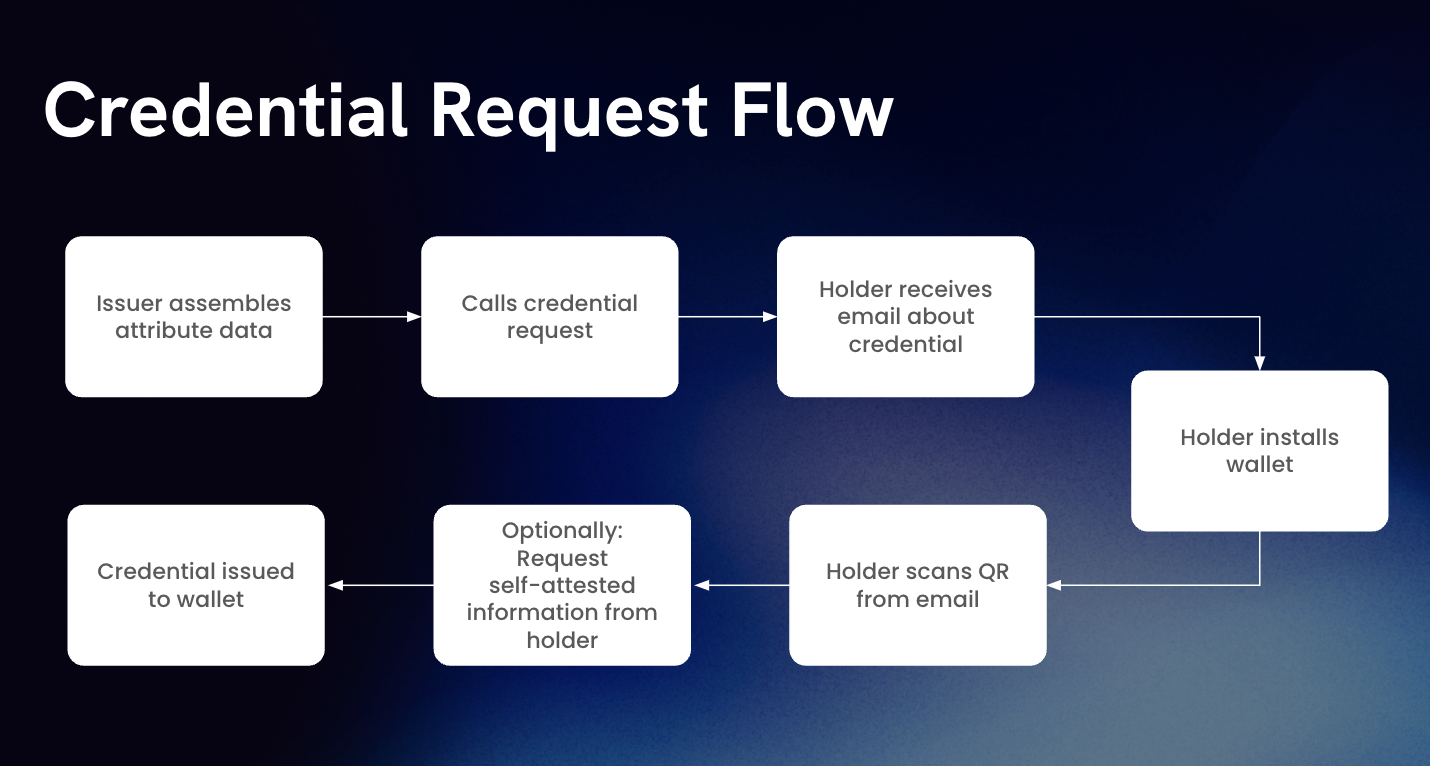

## Credential request flow

<figure><img src="https://815575130-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FWRMhdRsPkUzlSqCYzbgF%2Fuploads%2Fgit-blob-eee44e4a8efdc199e850c1cb57f2e3f7badaa3fb%2FScreenshot%202024-11-14%20at%2015.36.26.png?alt=media" alt=""><figcaption></figcaption></figure>
